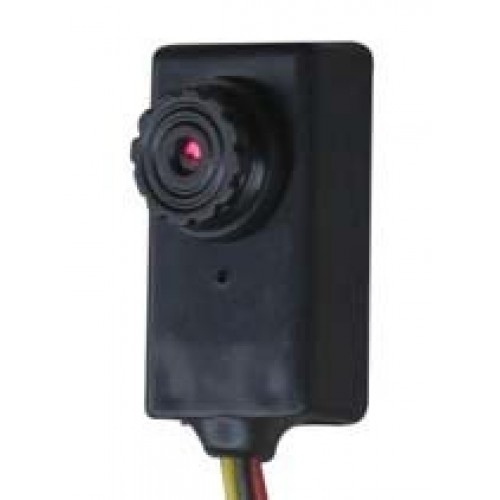

FPV 520TVL Mini Camera

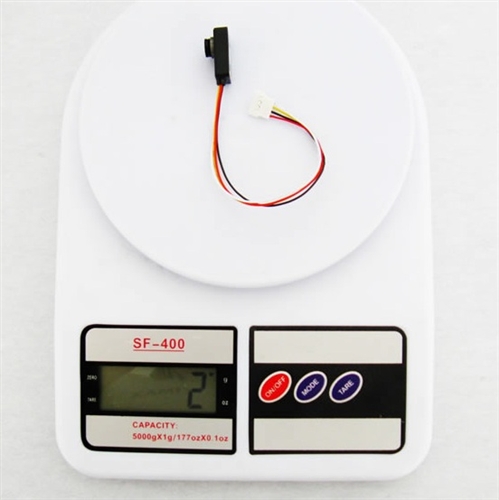

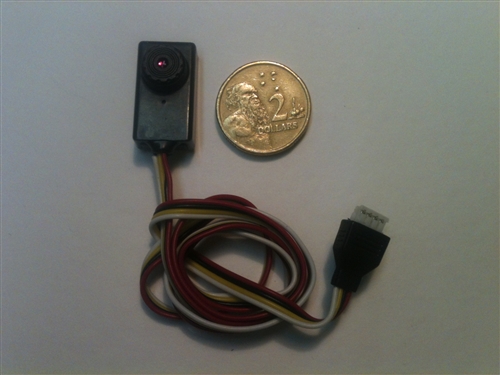

The camera come with high sensitive CMOS sensor, which has excellent video function and very low illumination. It is of high stability and ultra long working life. Its size is as small as coin. Weight is 2g only. It's very suitable for hidden surveillance.

System: NSTC or PAL Number of pixel: NSTC: 656(H)*492(W) PAL: 786(H)*576(W) Sensor dimension: 4.74mm (H) x 3.55mm (V) Horizontal resolution: 520TV Lines Sensivity: 0.009Lux/F1.2 Lens & View angle: 0.5mm F2.0/55deg S/N ratio: >48dB Size(L*W*H): 22mm*12mm*10mm Weight: 2g Working current: 75mA power requirement: DC 3.6V-5V Weight: 2g Work current: 75mA Power requirement: DC 3.6V-5V Excellent night vision of 0.008Lux/F1.2 LENS & VIEW ANGLE ：0.5mm F1.2 / 55 ° VIDEO OUT：1.0V p-p/75ohm
