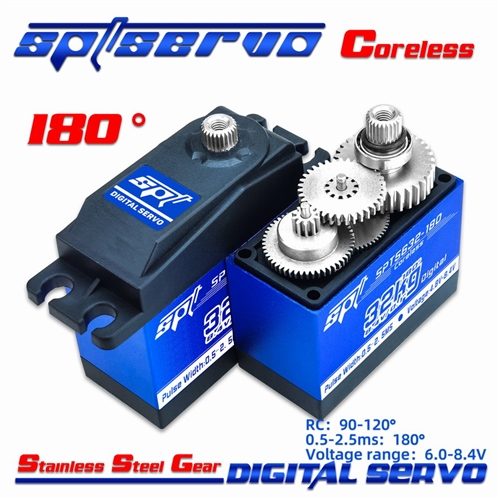

SPT5632-180 32kg Servo Large torque, Large angle, Metal gear Digital coreless servo

Products

Home > Servos > SPT >

SPT5632-180 32kg Servo Large torque, Large angle, Metal gear Digital coreless servo

Alternative Views:

Stock in.

Our Price: $52.00

Stock Status:In Stock

Product Code: SPT5632

Qty:

Description

SPT5632-180

Brand:

SPT Servo

Potentiometer:

Mechanics

Motor:

Coreless

Voltage Range:

4.8V/6.0V/8.4V

Neutral Point:

1500μs

Signal Frequency:

330Hz

PWM Voltage:

3.3V-5.0V

PWM Voltage:

3.3V-5.0V

Feedback Angle:

Operating Temperature:

-10℃-50℃

Cycle:

20ms

Dead band:

2μs

Default Direction:

Yes / no Lock:

No Lock

Remote control Angle:

90°

500-2500μs Angle:

180° / PWM

Quiescent Current:

10mAH

Rated Current:

1.5A

Blocking Current:

2.5A

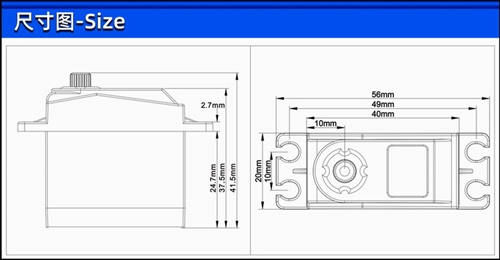

Weight / Dimensions:

58g / 40.5*20*37.5mm

Output Gear:

Futaba 25T

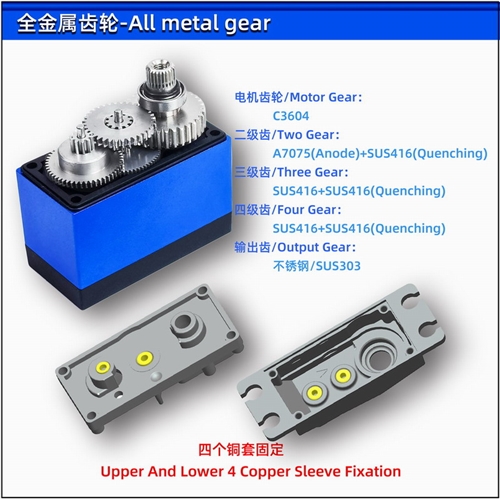

Gear Material:

All Metal Gear

Shell Material:

Half Aluminum Shell

Bearing:

2BB

Connector Wire Length:

260MM

line Definition:

Brown-/Red+/Orange s

Operating Speed:

4.8V/0.16 ''/60°

6.0V/0.13 ''/60°

7.4V/0.10 ''/60°

Stall Torque:

4.8V/20.7 kg.cm

6.0V/25 kg.cm

7.4V/32 kg.cm

Features
