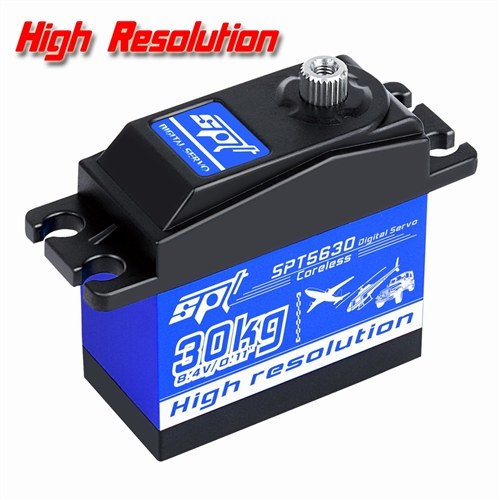

SPT5630 High Resolution, High Speed Digital Servo/30kg, Coreless

Products

Home > Servos > SPT >

SPT5630 High Resolution, High Speed Digital Servo/30kg, Coreless

Alternative Views:

Stock in.

Our Price: $52.00

Stock Status:In Stock

Product Code: SPT5630

Qty:

Description

SPT5630 - Specs

Potentiometer:

Mechanics

Motor:

Coreless

Voltage Range:

4.8V/6.0V/8.4V

Neutral Point:

1500μs

Signal Frequency:

330Hz

PWM Voltage:

3.3V-5.0V

PWM Voltage:

3.3V-5.0V

Feedback Angle:

Operating Temperature:

-10℃-50℃

Cycle:

20ms

Dead band:

1μs

Default Direction:

CCW

Yes / no Lock:

Lock

Remote control Angle:

90°

500-2500μs Angle:

/° / PWM

Quiescent Current:

10mAh

Rated Current:

1.5A

Blocking Current:

2.5A

Weight / Dimensions:

58g / 40.5*20*37.5mm

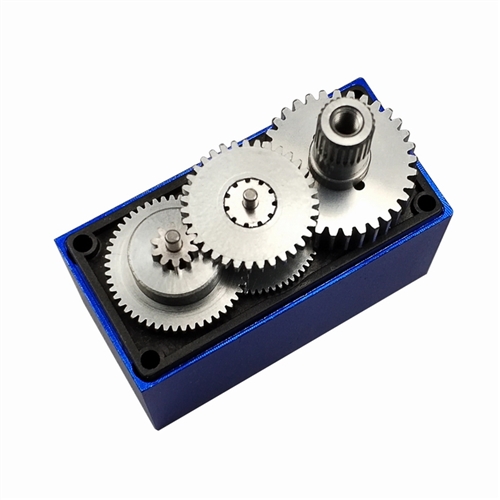

Output Gear:

Futaba 25T

Gear Material:

All Metal Gear

Shell Material:

Half Aluminum Shell

Bearing:

2BB

Connector Wire Length:

260MM

line Definition:

Brown-/Red+/Orange s

Operating Speed:

4.8V/0.18''/60°

6.0V/0.15 ''/60°

8.4V/ 0.11''/60°

Stall Torque:

4.8V/21 kg.cm

6.0V/26 kg.cm

8.4V/30 kg.cm

Features
