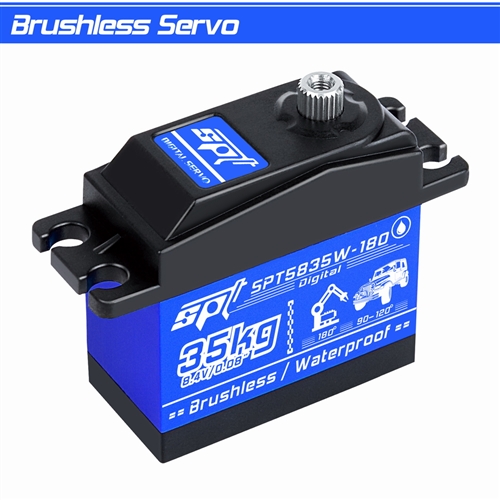

SPT5835W-180 35kg, Brushless, High Voltage, Large torque, Large angle/Metal gear Digital servo
SPT55835W-180 35kg, Brushless High Voltage, Large torque, Large angle/Metal gear Digital servo

Alternative Views:
Our Price: $64.30

Stock Status:In Stock

Product Code: SPT5835W-180
Qty:

Description

SPT5835W-180 - Specs
Potentiometer: Mechanics
Motor: Brushless Voltage Range: 4.8V/6.0V/8.4V
Neutral Point: 1500μs Signal Frequency: 330Hz
PWM Voltage: 3.3V-5.0V PWM Voltage: 3.3V-5.0V
Feedback Angle: No Operating Temperature: -10℃-50℃
Cycle: 20ms Dead band: 2μs
Default Direction: CCW Yes / no Lock: Lock
Remote control Angle: 90° 500-2500μs Angle: 180° / PWM
Quiescent Current: 10mAh Rated Current: 1.5A
Blocking Current: 2.5A Weight / Dimensions: 67g / 40.5*20*37.5mm

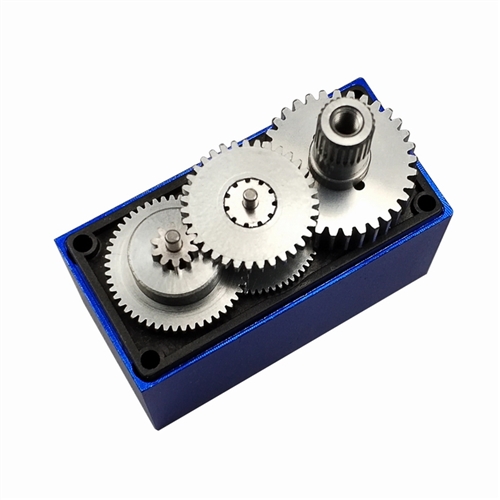

Output Gear: Futaba 25T Gear Material: All Metal Gear
Shell Material: Half Aluminum Shell Bearing: 2BB
Connector Wire Length: 260MM line Definition: Brown-/Red+/Orange s
Operating Speed:
/
6.0V/ 0.11''/60° 8.4V/ 0.08''/60°
Stall Torque:
/
6.0V/ 25kg.cm 8.4V/ 35kg.cm
