BWS-5B 4WD Buggy Ready to Roll Version 2
We are very happy that our new BWS-5B
2.0 off-road vehicle has officially been announced, and the new car
has been upgraded in a comprehensive way.
1. Based on the original 1.0 version,
the front and rear wheel base is adjusted to ensure flexibility while
making high-speed corner control more convenient and further
improving vehicle stability.
2. After a long time of testing in
various complex terrain and road conditions, we have reset the
parameters of front and rear shock absorption, synchronously adjust
the front and rear shock absorption Angle, so that the overall
posture of the vehicle is further improved.

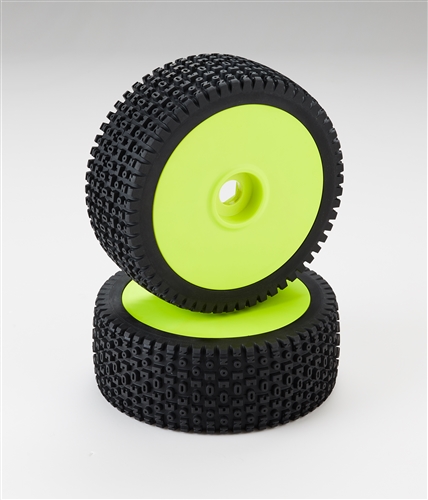

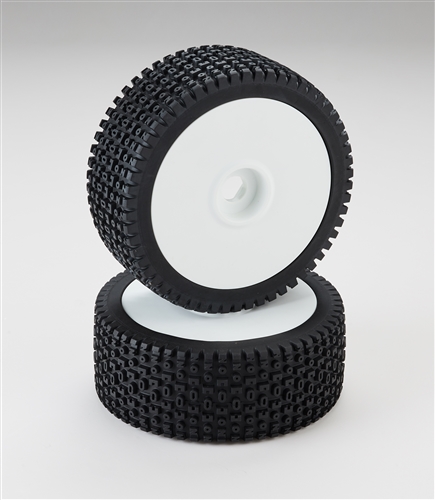

3. The newly created G-X (GriP-X)
series of lightweight racing tires can provide very sufficient GRIP
in different road conditions, and with the newly designed tire nuts,
the appearance of the vehicle is further enhanced
4. Compared to the 1.0 version of the
whale tail, the new design of the second generation of the tail is
more visually aggressive, while providing greater down force,
increasing vehicle stability. The tail Angle can also be adjusted
according to road conditions in second gear.
5.This adjustment changed the mediocre
shape of the previous generation, and we brought different styles of
painted car shells, making the overall appearance more recognizable.
6. The whole car rod is upgraded with
new lightweight materials, and the overall weight is reduced by about
3-4 times compared with the previous generation while improving the
strength
7. The steering system is changed from
the previous generation of double tie rod to DTT series single tie
rod steering, which can further increase the steering Angle, reduce
the turning radius of the vehicle and improving the pass ability, and
at the same time increasing the operation convenience of battery
replacement.
8. By adjusting the size of the
steering gear frame, steering gear arm and other related components,
the direction of the output force is always in a horizontal plane
when the steering gear is working, and the working efficiency of the
steering gear is further improved. At the same time, the steering
gear arm was changed from the original plastic material to the CNC
aluminum alloy material, and the strength was further increased
9. Engineers have comprehensively
upgraded the original direct shaft mechanism, by adding a force
release device in the mechanism, so that the vehicle can not only
maintain direct power output, but also play a certain buffer
protection role in the severe movement of the vehicle transmission
system. The support system of the buffer mechanism is replaced by CNC
high-strength aluminum alloy simultaneously from the original
plastic material to further improve the structural stability. At the
same time, we have carried out a comprehensive upgrade of the vehicle
gear, and under the multiple collocation, the risk of gear sweeping
is further reduced

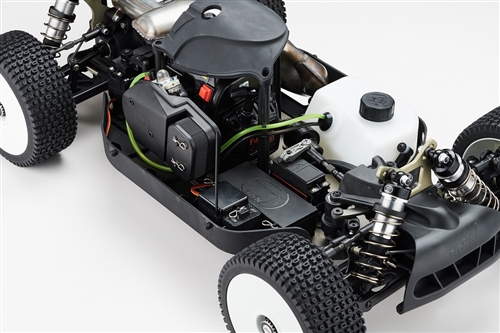

10. The newly designed air filter
system ensures sufficient engine intake, while the imported air
filter sponge further reduces the risk of foreign body inhalation
during efficient engine operation

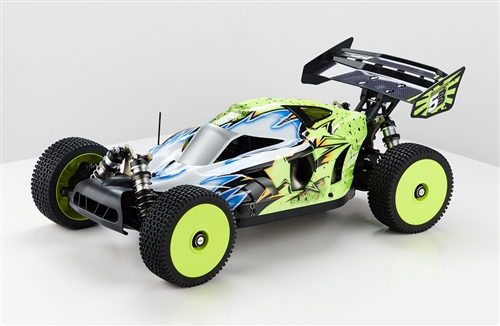

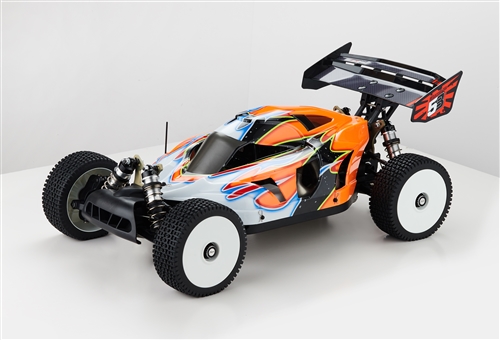

The 5B Body Shell comes 2 colors, Green and Orange
Scale: 1:5
L x W x H: 800mm x 450mm x 315mm
Wheelbase: 560mm
Wheel Thread: 375mm (F), 370mm (R)
Ground clearance: 51mm
Max. Speed: 80 Kmh
Fuel Tank: 700cc
Drive Mode: 4WD
Tire: 185mm x 75mm Speedway Tire
Gear Rate: 19:58
Shock Absorber: 7mm Adjustable front and rear, hydrailic
Suspension: 4 wheel independent
Drivetrain: 4 wheel driven at 3 differentials and centrifugal clutch
Chasis: 6061T6 High-strength Aerospace Aluminim Alloy
Shock Tower: 7075T6 High-strength Aerospace Aluminum Alloy
Shell: 30Degrees North one piece Lexan shell Buggy type Clear
Wheel Hub color: White and Orange
Shock color: Red, Blue, Black.
Bearings All moving parts including Technical servo saver.
