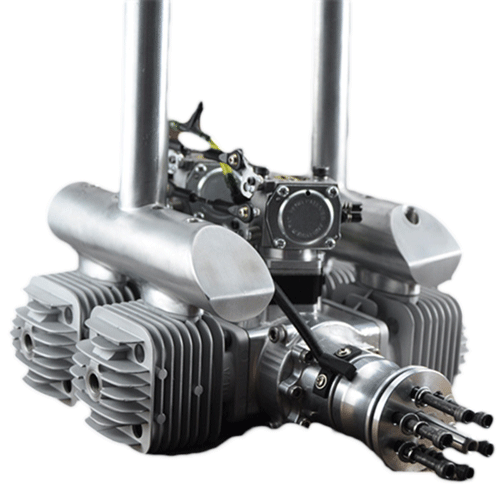

18-DLA128CC 4 Cylinder Gasoline Engine
Product Code: DLA128Q
Our Price: $0.00
Description
DLA128CC 4 Cylinder Gasoline Engine for Large Scale Aircraft.
Capacity: 128cc
Output: 13HP
Cylinder Bore/ Stroke: 37MM/30MM
Speed range: 1300-6600 RPM
Pulling force: 30KG/1000 Meter altitude
Cylinder arrangement: four boxer
Fuel: Gasoline + 2T synthetic oil
Lubrication Ratio: 25:1~30: 1(trial run)
40: 1~50:1(normal flying) 92# 93# gasoline 2T synthetic oil
Compression Ratio: 7.6:1
Propeller Recommended: 28*10，28*8 32*8 27*10 29*10，29*10
Spark Plug: DLA CM6，Iridium
Voltage: 6.6v-8.4v, 2 LiPo batteries recommended.
Weight: Main engine: 3260g Exhaust pipe: 126*2g Ignition: 180g standoffs: 22*4g
This engine is mainly used for fixed-wing with take-off weights
(including Gasoline) not more than 18 KGS. Its crankcase, crankshaft,
central screws are all made of high-performance materials by
CNC processing method. With beautiful appearance, high-precision, drop
resistance, fatigue resistance, good stability, strong power
performance, 2 cylinders with independent ignition and independent fuel
feeding.
